Dodge F4B-SCED-104 Cast Iron Greasable 4-Bolt Flange Unit

Product Description

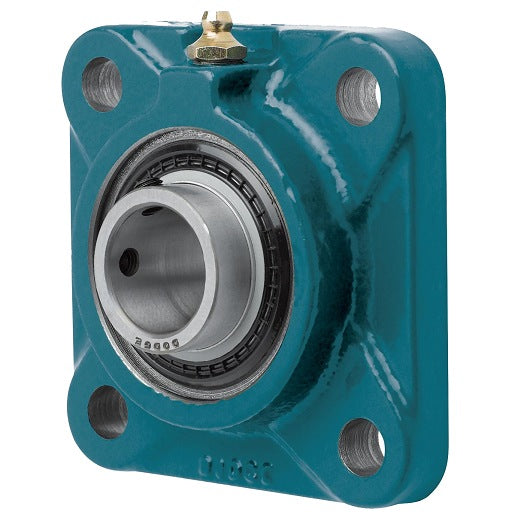

The Dodge F4B-SCED-104 is a durable greasable 4-bolt flange bearing unit. It is designed to fit shafts with a diameter of one point two five inches and features solid housing construction. This unit is made from cast iron, ensuring reliability in various applications.

• 1.25 inch shaft diameter
• 4-bolt flange design
• Greasable for easy maintenance

Product Highlights

This bearing unit is suitable for general applications, providing robust performance with a dynamic load capacity of five thousand seven hundred fifty-nine lbf.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4B-SCED-104

Technical Specifications

• Housing Construction: Solid
• Shaft Diameter: 1.25 inches
• Max Speed: 3500 rpm
• Housing Material: Cast Iron
• Locking Device: Setscrew
• Grease Type: Mobilith SHC PM 220
• Flange Type: 4-Bolt Flange
• Static Load Capacity: 3461 lbf
• Dynamic Load Capacity: 5759 lbf
• Lubrication: Grease
• Expansion Capability: Fixed
• Bore Length: 1.71 inches
• Ball Bearing Series: 207 Series
• Greasable: Yes
