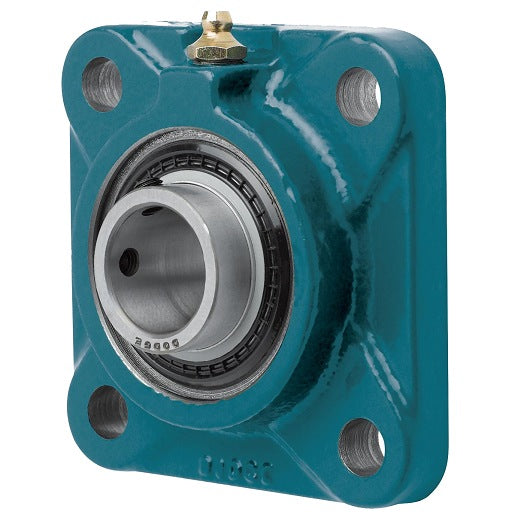

Dodge F4B-SC-108-NL | Flange-Mount Ball Bearing Unit - 1.5 In Bore - 4-Bolt Flange

Product Description

The Dodge F4B-SC-108-NL is a flange-mount ball bearing unit with an inner bore diameter of one and a half inches. It features a four-bolt flange design meant for easy installation. This unit is constructed from solid cast iron for durability and strength. It operates optimally at a maximum speed of three thousand five hundred RPM and provides radial load capacities of up to seven thousand three hundred thirty-two pounds dynamic and four thousand four hundred seventy-five pounds static.

• Compatible with 1.5 in shaft diameter
• 4-bolt flange configuration
• Solid construction, suitable for standard duty applications

Product Highlights

This unit is designed for fixed expansion applications and is lubricated with Unirex N2 grease. The locking mechanism utilizes a setscrew for secure operation. Not ideally suited for high-temperature settings, the design remains robust for general use.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4B-SC-108-NL

Technical Specifications

• Bearing Type: Ball
• Bore Length: 1.94 in
• Bolt Diameter: 0.5 in
• Dynamic Load Capacity: 7332 lbf
• Static Load Capacity: 4475 lbf
• Expansion Capability: Fixed
• Sensor Ready: Adapter Required
• Housing Material: Cast Iron
