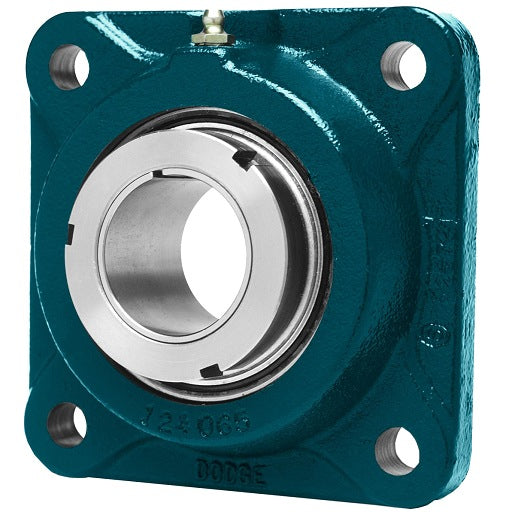

Dodge F4B-GTM-211 Cast Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-GTM-211 is a cast iron greasable 4-bolt flange unit designed for heavy-duty applications. This flange unit features a bolt-to-bolt distance of six inches and a shaft diameter of two point six eight eight inches. The solid housing construction ensures durability, while the cast iron material adds strength for various industrial needs.

• 4-bolt flange for secure mounting
• Grease lubrication for effective performance
• Ball bearing type for reliable operation

Product Highlights

Ideal for applications requiring robust and reliable bearing support.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101014199

Technical Specifications

• Bolt to Bolt (Max): 6 inches
• Bolt to Bolt (Min): 6 inches
• Housing Construction: Solid
• Expansion Capability: Fixed
• Bearing Type: Ball
• Locking Device: Push-Pull Adapter
• Shaft Diameter: 2.688 inches
• Housing Material: Cast Iron
• Flange Type: 4-Bolt Flange
• Insert Material: Steel
• Suitable for Washdown: No
• Greasable: Yes
• Weight: 18.1 LB
• EAN or UPC: 782475890958
