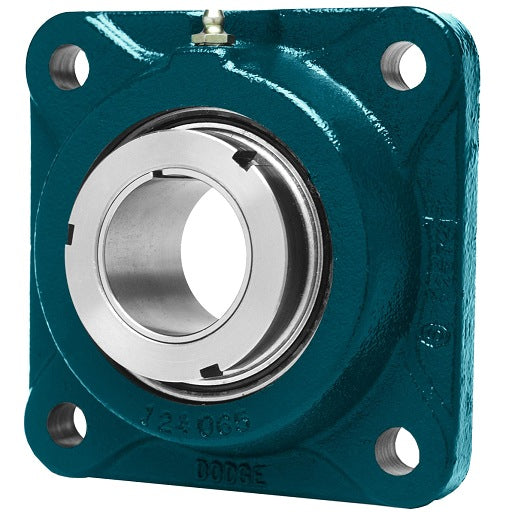

Dodge F4B-GTM-108 Cast Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-GTM-108 is a cast iron greasable 4-bolt flange unit designed for various industrial applications. This unit features a shaft diameter of one and a half inches, ensuring compatibility with standard equipment. It is specifically constructed with solid housing and a ball bearing type for durability.

• 1.5 inches shaft diameter
• 4-bolt flange design
• Fixed bearing setup

Product Highlights

This flange unit is built for reliable performance in industrial environments.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4B-GTM-108

Technical Specifications

• Expansion Capability: Fixed
• Housing Material: Cast Iron
• Bearing Type: Ball
• Housing Construction: Solid
• Sensor Ready: Adapter Required
• Bolt to Bolt [Max]: 4.13 inches
• Standoff Housing: No
• Flange Type: 4-Bolt Flange
• Locking Device: Push-Pull Adapter
• Bolt to Bolt [Min]: 4.13 inches
• Insert Material: Steel
• Greasable: Yes
• Suitable For Washdown: No
• Shaft Diameter: 1.5 inches
• Bore Length: 2.01 inches
• Lubrication: Grease
• Suitable for High Temperature: No
• Weight: 5.84 LB
• EAN or UPC: 782475890293
