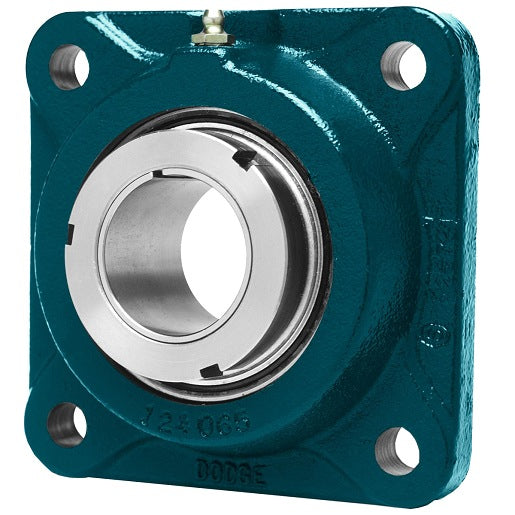

Dodge F4B-GTAH-100 Cast Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-GTAH-100 is a cast iron greasable 4-bolt flange unit designed for various industrial applications. This unit features a one-inch shaft diameter and solid housing construction, making it suitable for reliable mounting solutions. It is particularly effective in environments where flexibility and durability are required.

• 1 inch shaft diameter
• Greasable design for enhanced maintenance
• Solid cast iron housing

Product Highlights

The unit supports a stable and secure connection, ensuring that machinery operates smoothly. The 4-bolt flange design provides ease of installation and alignment.

Product Information

Standard Information

• Brand: Dodge
• Part Number: F4B-GTAH-100

Technical Specifications

• Bore Diameter: 1 inch
• Bore Length: 1.44 inches
• Flange Type: 4-bolt flange
• Housing Material: Cast iron
• Insert Material: Steel
• Weight: 2.01 pounds
• Lubrication: Grease
• Bearing Type: Ball
• Standoff Housing: No
• Greasable: Yes
• Expansion Capability: Fixed
• Locking Device: Push-Pull Adapter
• Suitable for High Temperature: No
