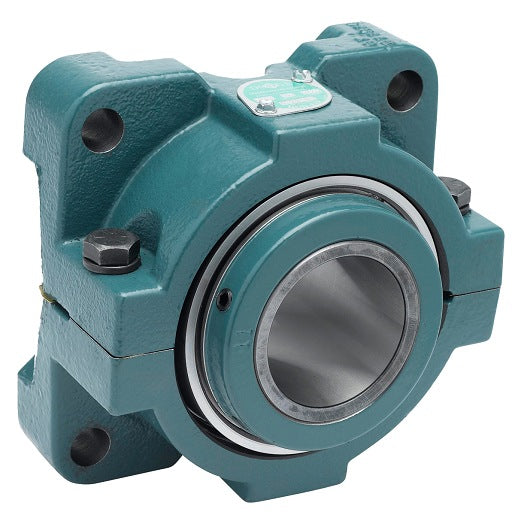

Dodge F4B-EXL-307R Four-Bolt Square Roller Bearing Unit | Tapered Roller Bearing | 3-7/16 in Bore | 4-Bolt Flange Mount | 077322

Product Description

The Dodge F4B-EXL-307R is a four-bolt square roller bearing unit designed for efficient operation. This unit features a tapered roller bearing with a bore diameter of three and seven-sixteenths inches. It is suitable for fixed mounting applications and is constructed from ductile iron for durability.

• Operating speed up to 1640 RPM
• Triple-lip contact seal for enhanced protection
• Set screw locking device for secure attachment

Product Highlights

This flange bearing unit is ideal for machinery requiring robust support and can handle significant radial loads.

Product Information

Standard Information

• Brand: Dodge
• Part Number: F4B-EXL-307R

Technical Specifications

• Bore Diameter: 3-7/16 in
• Bore Length: 5 in
• Maximum Speed: 1640 RPM
• Radial Static Load Capacity: 108600 lbf
• Radial Dynamic Load Capacity: 17750 lbf
• Housing Material: Ductile Iron
• Mounting Type: 4-Bolt Flange
• Expansion Type: Non-Expansion Bearing (Fixed)
• Locking Device: Set Screw
• Insert Material: Steel
• Grease Type: None
• Lubrication: Grease
