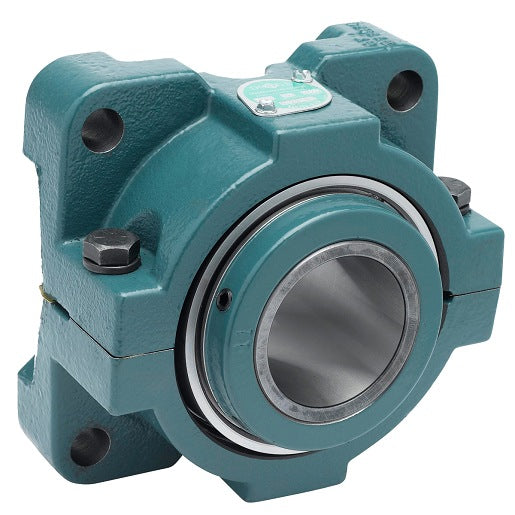

Dodge F4B-EXL-207R Ductile Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-EXL-207R is a ductile iron greasable 4-bolt flange unit designed for reliable performance in various applications. This bearing unit features a shaft diameter of two point four three eight inches, making it suitable for heavy-duty operations.

• 4-bolt flange design
• Ductile iron housing material
• Static load capacity of fifty-four thousand lbf

Product Highlights

This bearing unit is greasable and supports a maximum speed of two thousand four hundred twenty revolutions per minute. It incorporates a setscrew locking mechanism for secure installation.

Product Information

Standard Information

• Brand: Dodge
• Part Number: F4B-EXL-207R

Technical Specifications

• Bolt Diameter: 0.625 in
• Shaft Diameter: 2.438 in
• Expansion Capability: Fixed
• Locking Device: Setscrew
• Housing Material: Ductile Iron
• Static Load Capacity: 54000 lbf
• Greasable: Yes
• Bearing Type: Tapered Roller
• Lubrication: Grease
• Seal Type: Triple-Lip Contact
• Housing Dimensional Standard: Type E
• Bore Length: 4 in
• Flange Type: 4-Bolt Flange
• Speed [Max]: 2420 rpm
• Insert Material: Steel
• Housing Construction: Split
• Weight: 24.0 LB
• EAN or UPC: 782477124167
