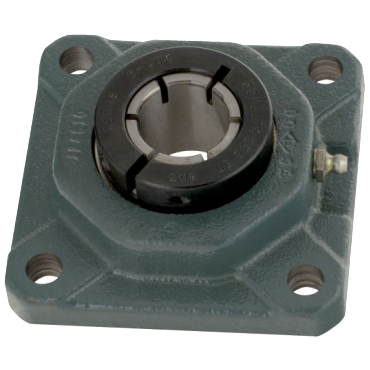

Dodge F4B-DLM-208 Flange-Mount Ball Bearing Unit 2-1/2 in Bore 4-Bolt Flange Mount

Product Description

The Dodge F4B-DLM-208 is a flange-mount ball bearing unit designed for industrial applications. This unit features a two and a half inches bore and a four-bolt flange mount system. The design includes a clamp collar for secure installation and is made from cast iron for durability in demanding conditions. It is a non-expansion bearing, which ensures it remains fixed during operation.

• Cast iron housing for strength
• Fixed configuration for stability
• Unit includes a single lip contact seal for protection

Product Highlights

The Dodge F4B-DLM-208 is built for performance and reliability in various machinery and equipment.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• Bore Diameter: 2-1/2 inches
• Bore Length: 2.6 inches
• Radial Static Load Capacity: 9838 lbf
• Radial Dynamic Load Capacity: 13995 lbf
• Type Of Bearing: Ball
• Expansion Capability: Non-Expansion (Fixed)
• Shaft Attachment: Clamp Collar
• Manufacturer Catalog Number: 128854
