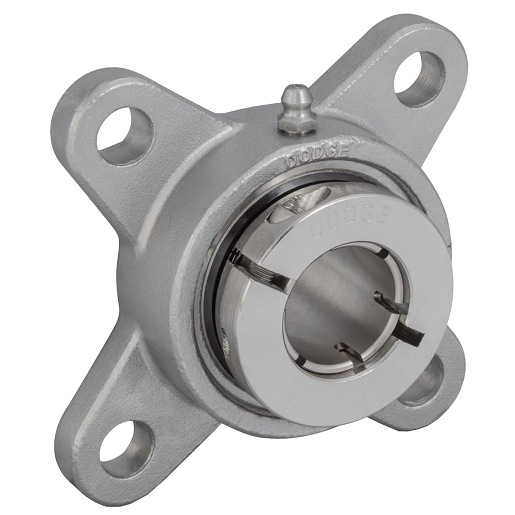

Dodge F4B-DLEZ-108-SHCR | Stainless Steel Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-DLEZ-108-SHCR is a stainless steel greasable 4-bolt flange unit designed for robust applications. It features a diameter of 1.5 inches and comes equipped with a clamp collar locking mechanism. This unit is engineered for high durability and stability in various operating conditions.

• 1.5 inches shaft diameter
• 4-bolt flange for secure mounting
• Stainless steel housing material for enhanced corrosion resistance

Product Highlights

The product is suitable for high precision applications and is designed to withstand tough environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: F4B-DLEZ-108-SHCR

Technical Specifications

• Insert Material: Plated Steel
• Bore Length: 2.01 inches
• Bolt Diameter: 0.5 inches
• Flange Type: 4-Bolt Flange
• Lubrication: Grease
• Grease Name: MobilGrease FM222
• Expansion Capability: Fixed
• Housing Construction: Solid
• Weight: 4.21 pounds
• EAN or UPC: 782475584055
