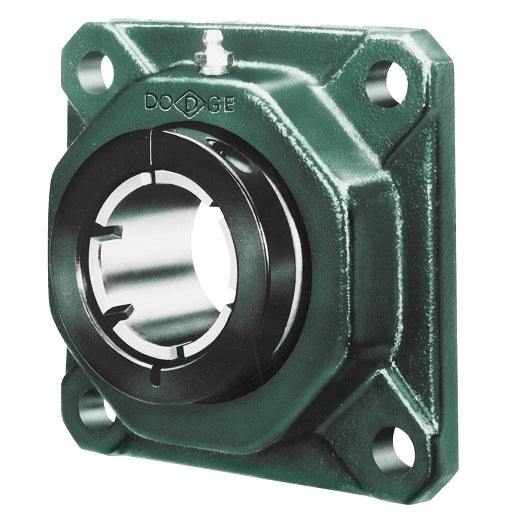

Dodge F4B-DL-100-NL Cast Iron 4-Bolt Flange Unit

Product Description

The Dodge F4B-DL-100-NL is a cast iron 4-bolt flange unit designed for high performance and durability. This unit features a one-inch shaft diameter and a solid housing construction. The ball bearing type ensures smooth operation under varying loads.

• 1 inch shaft diameter
• 4-bolt flange design
• Solid cast iron housing

Product Highlights

This flange unit is suitable for various industrial applications where reliable support is needed. It can handle maximum loads while providing stability due to its fixed expansion capability.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4B-DL-100-NL

Technical Specifications

• Shaft Diameter: 1 inch
• Dynamic Load Capacity: 3146 lbf
• Static Load Capacity: 1769 lbf
• Housing Material: Cast Iron
• Bearing Type: Ball
• Housing Construction: Solid
• Ball Bearing Series: 205 Series
• Lubrication: Grease
• Speed Max: 7500 rpm
• Insert Material: Steel
