Dodge F2BZ-SC-35M Cast Iron Greasable 2-Bolt Flange With Pilot Flange Unit

Product Description

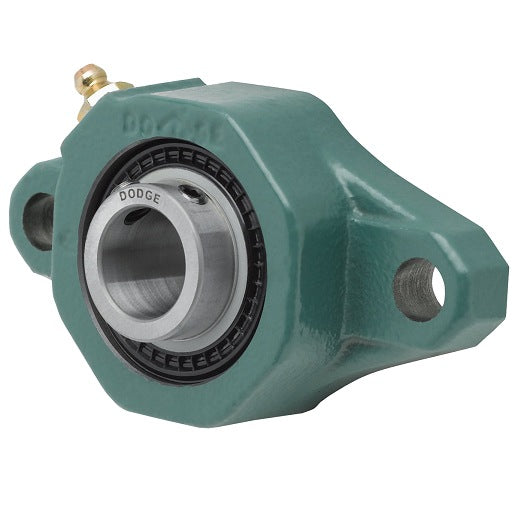

The Dodge F2BZ-SC-35M is a cast iron greasable 2-bolt flange unit designed for reliable performance in various applications. This unit features a shaft diameter of thirty-five millimeters and is suitable for standard duty tasks.

• Greasable design for easy maintenance
• Solid housing construction for durability
• 2-bolt flange with pilot for secure mounting

Product Highlights

This bearing unit is ideal for various industrial applications. It is designed with a static load capacity of three thousand four hundred sixty-one pounds and a dynamic load capacity of five thousand seven hundred fifty-nine pounds. The unit supports a maximum speed of three thousand five hundred revolutions per minute.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2BZ-SC-35M

Technical Specifications

• Shaft Diameter: 35 mm
• Housing Material: Cast Iron
• Grease Type: Unirex N2
• Flange Type: 2-Bolt Flange With Pilot
• Pilot Depth: 0.16 in
• Maximum Speed: 3500 rpm
• Dynamic Load Capacity: 5759 lbf
• Static Load Capacity: 3461 lbf
