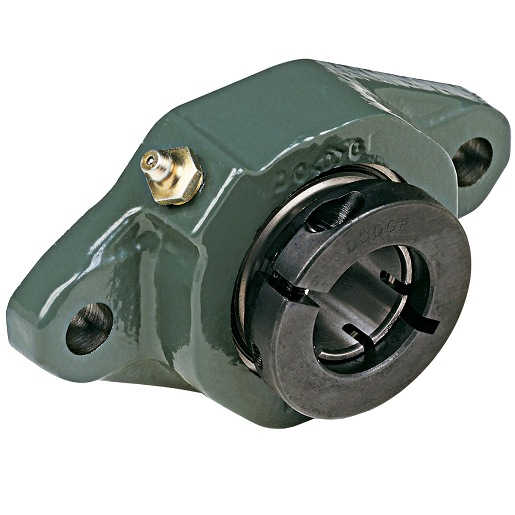

Dodge F2BZ-DL-100 Cast Iron Greasable 2-Bolt Flange With Pilot Flange Unit

Product Description

The Dodge F2BZ-DL-100 is a cast iron greasable 2-bolt flange with a pilot flange unit. This bearing unit features a one-inch shaft diameter and is made from solid cast iron for durability.

• 1 inch shaft diameter
• 2-bolt flange with pilot
• Greasable design for easy maintenance

Product Highlights

This product is built for long-lasting performance in demanding applications. It provides a reliable mounting solution with easy lubrication access.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2BZ-DL-100

Technical Specifications

• Housing Material: Cast Iron
• Insert Material: Steel
• Bolt Diameter: 0.438 inches
• Flange Type: 2-Bolt Flange With Pilot
• Pilot Diameter: 2.362 inches
• Speed [Max]: 7500 rpm
• Dynamic Load Capacity: 3146 lbf
• Static Load Capacity: 1769 lbf
• Shaft Diameter: 1 inch
• Bearing Type: Ball
