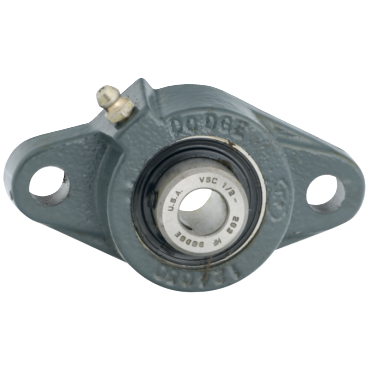

Dodge F2BVSC103 Flange-Mount Ball Bearing Unit - 1-3/16 in Bore - 2-Bolt Flange Mount

Product Description

The Dodge F2BVSC103 is a flange-mount ball bearing unit designed for mounting with a two-bolt flange. The bearing features a one and three-sixteenth inch bore and is suitable for standard duty applications. The cast iron housing provides strength while the set screw locking mechanism ensures secure attachment.

• 1-3/16 inch bore for versatile applications
• Cast iron housing for durability
• Standard duty rating with single lip contact seal

Product Highlights

This bearing unit is ideal for various industrial applications. Its robust construction and reliable locking mechanism make it suitable for challenging environments.

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• MPN: F2BVSC103
• Bore Diameter: 1-3/16 in
• Bore Length: 1.52 in
• Weight: 1.95 lbs
• Length: 6.7 in
• Width: 3.5 in
• Height: 1.7 in
• Grease Type: Unirex N2
• Lubrication: Grease
• Insert Material: Steel
• Housing Material: Cast Iron
• Duty Type: Standard Duty
• Seal Type: Single Lip Contact Seal
• Locking Device: Set Screw
• Expansion Type: Non-Expansion Bearing (Fixed)
