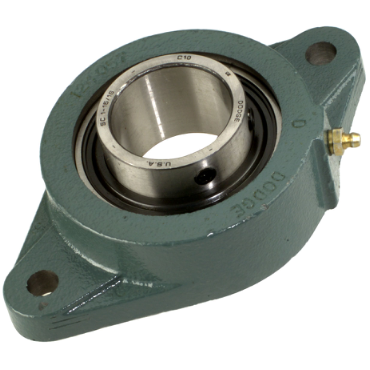

Dodge F2BSCM112 Flange-Mount Ball Bearing Unit - 1-3/4 in Bore, 2-Bolt Flange Mount, Set Screw Locking, Cast Iron Housing Material

Product Description

The Dodge F2BSCM112 is a flange-mount ball bearing unit featuring a one and three quarter inch bore. This unit is suitable for medium duty applications and is built with a two-bolt flange mount for easy installation. The cast iron housing material ensures durability, and the fixed non-expansion design provides stability during operation. It is ideal for use in various mechanical applications.

• 1-3/4 inch bore size
• Two-bolt flange mount for secure attachment
• Set screw locking mechanism

Product Highlights

Product Information

Standard Information

• Brand: Dodge
• Country Of Origin: United States

Technical Specifications

• MPN: F2BSCM112
• Bore Diameter: 1-3/4 in
• Bore Length: 1.94 in
• Weight: 4.565 lbs
• Maximum Speed: 3000 rpm
• Duty Type: Medium Duty
• Seal Type: Single Lip Contact Seal
• Housing Material: Cast Iron
• Locking Device: Set Screw
• Radial Static Load Capacity: 5213 lbf
• Radial Dynamic Load Capacity: 7891 lbf
• Insert Material: Steel
