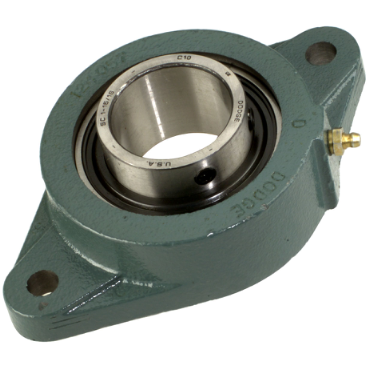

Dodge F2BSCM103 Flange-Mount Ball Bearing Unit - 1-3/16 in Bore, 2-Bolt Flange Mount, Set Screw Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Medium Duty, Single Lip Contact Seal

Product Description

The Dodge F2BSCM103 is a flange-mount ball bearing unit designed for medium-duty applications. It features a bore diameter of one and three-sixteenths inches and a two-bolt flange mount for easy installation. This product is reliable due to its set screw locking mechanism and durable cast iron housing.

• Bore Type: Straight
• Medium duty design for applications that require moderate load capacities
• Single lip contact seal minimizes contamination

Product Highlights

This unit is suitable for various industrial applications where robust bearing solutions are necessary.

Product Information

Standard Information

• Country of Origin: United States
• UOM: Each

Technical Specifications

• MPN: F2BSCM103
• Bore Diameter: 1-3/16 inches
• Bore Length: 1.71 inches
• Weight: 3.25 pounds
• Maximum Speed: 3500 rpm
• Radial Dynamic Load Capacity: 5759 lbf
• Radial Static Load Capacity: 3461 lbf
• Seal Type: Single Lip Contact Seal
• Locking Device: Set Screw
• Duty Type: Medium Duty
• Housing Material: Cast Iron
• Type Of Bearing: Ball
