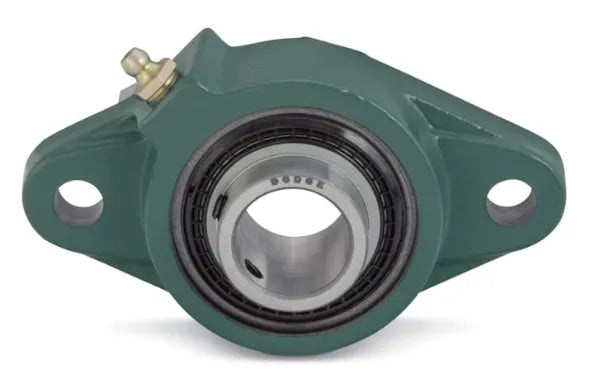

Dodge F2BSCAH107 Flange-Mount Ball Bearing Unit - 1-7/16 in Bore - 2-Bolt Flange Mount

Product Description

The Dodge F2BSCAH107 is a flange-mount ball bearing unit designed for a one and seven-sixteenth inch bore. It features a two-bolt flange mount and uses a set screw for secure locking. This unit is made from cast iron and is a non-expansion bearing, making it suitable for standard duty applications. The single lip contact seal helps reduce contamination. The unit is effective for various industrial settings.

• Fixed type bearing with a set screw locking mechanism
• Standard duty with radial static load capacity of 3461 lbf
• Non-expansion design enhances performance in stationary applications

Product Highlights

This bearing unit is ideal for applications that require reliability and durability in a fixed position. It is straightforward to install and suitable for a range of industrial machinery.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: F2BSCAH107
• Bore Diameter: 1-7/16 in
• Bore Length: 1.71 in
• Type of Bearing: Ball
• Duty Type: Standard Duty
• Radial Static Load Capacity: 3461 lbf
• Radial Dynamic Load Capacity: 5759 lbf
• Grease Type: Unirex N2
