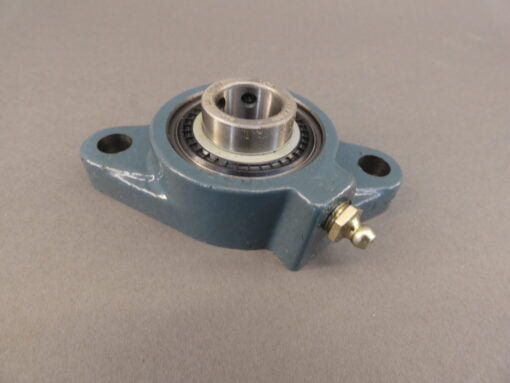

Dodge F2BSC20M Flange-Mount Ball Bearing Unit 20 mm Bore 2-Bolt Flange Mount

Product Description

The Dodge F2BSC20M is a flange-mount ball bearing unit designed for reliability in various applications. This unit features a 20 mm bore and a 2-bolt flange mount configuration. It is ideal for standard duty uses and comes with a set screw locking mechanism. The housing is made from cast iron, ensuring durability and stability.

• Standard duty design with a set screw locking device
• Built for smooth operation at a maximum speed of five thousand rpm
• Straight bore type with a single lip contact seal

Product Highlights

The Dodge F2BSC20M provides a solid construction suitable for fixed applications. It is designed for easy lubrication using grease and is compatible with Unirex N2 grease type.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: F2BSC20M
• Bore Diameter: 20 mm
• Weight: 1.1 lbs
• Height: 1.7 inches
• Width: 3.1 inches
• Length: 5.7 inches
• Maximum Speed: 5000 rpm
• Radial Dynamic Load Capacity: 2899 lbf
• Radial Static Load Capacity: 1482 lbf
• Duty Type: Standard Duty
• Seal Type: Single Lip Contact Seal
• Insert Material: Steel
• Locking Device: Set Screw
• Type Of Bearing: Ball
• Housing Material: Cast Iron
