Dodge F2BSC102NL Cast Iron 2-Bolt Flange Unit

Product Description

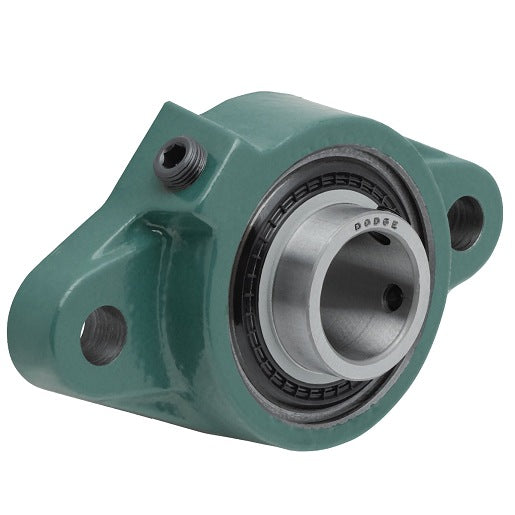

The Dodge F2BSC102NL is a cast iron 2-bolt flange unit, designed for durability and stability in various applications. It has a shaft diameter of one point one two five inches and features solid housing construction that provides reliable performance in different environments.

• 2-bolt flange design for easy mounting
• Ball bearing type for smooth operation
• Dynamic load capacity of four thousand three hundred sixty-eight pounds

Product Highlights

This flange unit is suitable for mounted bearing applications and offers a fixed expansion capability. It is designed to work at maximum speeds of four thousand five hundred rpm and is compatible with standard grease lubrication.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2BSC102NL

Technical Specifications

• Housing Material: Cast Iron
• Shaft Diameter: 1.125 inches
• Dynamic Load Capacity: 4368 lbf
• Static Load Capacity: 2538 lbf
• Speed [Max]: 4500 rpm
• Lubrication: Grease
• Flange Type: 2-Bolt Flange
• Expansion Capability: Fixed
