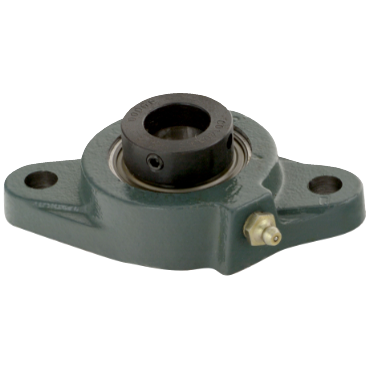

Dodge F2B-SXV-107 Flange-Mount Ball Bearing Unit - 1-7/16 in Bore - 2-Bolt Flange Mount - Replacement MPN

Product Description

The Dodge F2B-SXV-107 is a flange-mount ball bearing unit designed for reliable performance. It features a one and seven sixteenth inches bore and a two-bolt flange mount. The unit includes an eccentric collar locking mechanism and is constructed from cast iron for durability.

• Bore Diameter: 1-7/16 inches
• Maximum Speed: 3500 RPM
• Radial Dynamic Load Capacity: 5759 lbf

Product Highlights

This bearing unit is designed for fixed applications and includes a single lip contact seal. Its solid housing construction offers strength and stability in various operating conditions.

Product Information

Standard Information

• Type of Bearing: Ball
• Country of Origin: US

Technical Specifications

• MPN: F2B-SXV-107
• Bore Type: Straight
• Seal Type: Single Lip Contact Seal
• Grease Type: Unirex N2
• Lubrication: Grease
• Expansion Capability: Non-Expansion (Fixed)
• Housing Material: Cast Iron
• Insert Material: Steel
