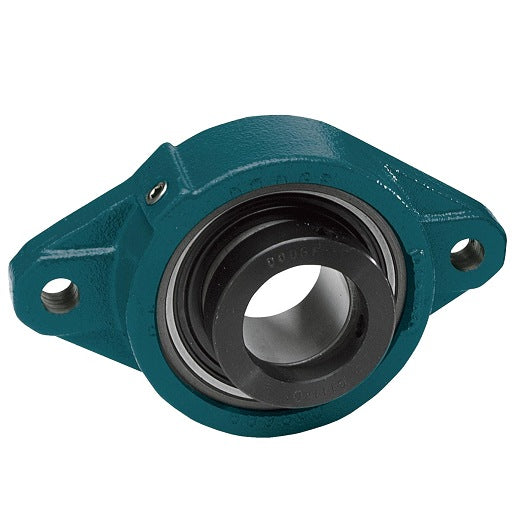

Dodge F2B-SXR-207 Cast Iron Greasable 2-Bolt Flange Unit

Product Description

The Dodge F2B-SXR-207 is a cast iron greasable 2-bolt flange unit designed for reliable performance in various applications. It features a shaft diameter of two point four three eight inches and a bore length of two point seven four inches, making it suitable for a range of tasks.

• Greasable design for easy maintenance
• Ball bearing type for smooth operation
• Cast iron housing for durability

Product Highlights

This unit is ideal for use in settings that require dependable support and rotation, such as conveyor systems or fans. The eccentric collar locking mechanism and single-lip contact seal contribute to its operational efficiency.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-SXR-207

Technical Specifications

• Bore Length: 2.74 inches
• Housing Construction: Solid
• Speed [Max]: 2000 rpm
• Bearing Type: Ball
• Locking Device: Eccentric Collar
• Lubrication: Grease
• Seal Type: Single-Lip Contact
• Static Load Capacity: 8100 lbf
• Dynamic Load Capacity: 11791 lbf
• Shaft Diameter: 2.438 inches
