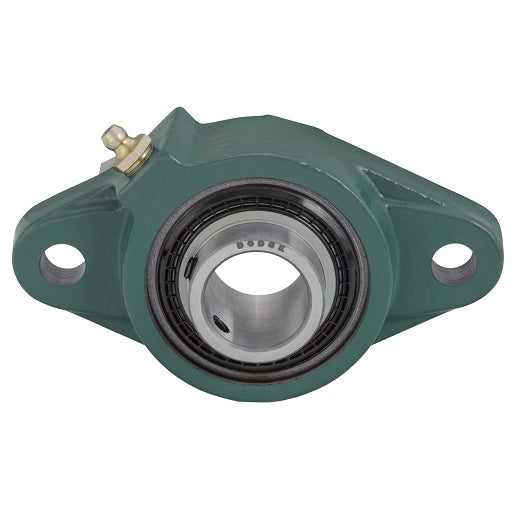

Dodge F2B-SCMED-115 Cast Iron Greasable 2-Bolt Flange Unit

Product Description

The Dodge F2B-SCMED-115 is a durable cast iron greasable 2-bolt flange unit designed for various applications. It features a shaft diameter of 1.938 inches and is built with solid housing construction for reliable performance.

• Flange Type: 2-Bolt Flange
• Dynamic Load Capacity: 9755 lbf
• Shaft Attachment: Setscrew

Product Highlights

This product provides excellent performance and longevity in operations requiring medium-duty applications. It is suitable for environments where grease lubrication is necessary for optimal performance, and it successfully accommodates a maximum speed of 2500 rpm.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-SCMED-115

Technical Specifications

• Bearing Type: Ball
• Ball Bearing Series: 211 Series
• Lubrication: Grease
• Housing Material: Cast Iron
• Weight: 6.9 lb
• Bore Length: 2.22 inches
• Shaft Diameter: 1.938 inches
• Dynamic Load Capacity: 9755 lbf
• Static Load Capacity: 6588 lbf
