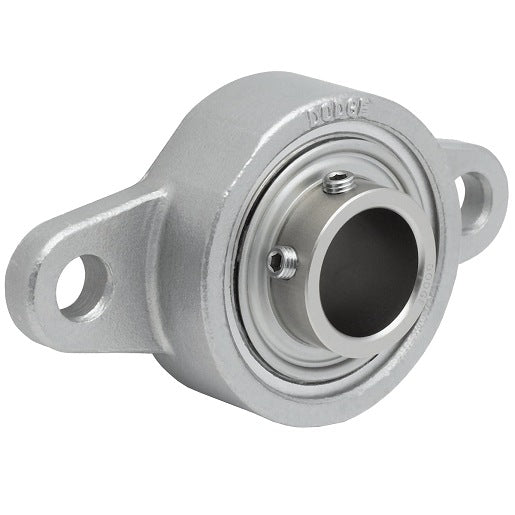

Dodge F2B-SCFS-103-SHFS Stainless Steel 2-Bolt Flange Unit

Product Description

The Dodge F2B-SCFS-103-SHFS is a stainless steel 2-bolt flange unit designed for versatile mounting solutions. This component features a one point one eight eight inches shaft diameter and is built for reliable operational integrity.

• 1.188 inches shaft diameter
• 2-bolt flange for easy installation
• Solid stainless steel housing

Product Highlights

This flange unit is suitable for various applications due to its durable construction and practical design.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-SCFS-103-SHFS

Technical Specifications

• Bolt Diameter: 0.438 inches
• Ball Bearing Series: 206 Series
• Grease Name: MobilGrease FM222
• Insert Material: Plated stainless steel
• Lubrication: Grease
• Seal Type: Triple-lip contact
• Bore Length: 1.52 inches
• Bearing Type: Ball
• Locking Device: Setscrew
• Housing Construction: Solid
• Greasable: No
• Flange Type: 2-bolt flange
• Shaft Diameter: 1.188 inches
• Maximum Speed: 675 rpm
• Static Load Capacity: 2538 lbf
• Dynamic Load Capacity: 4368 lbf
• Housing Material: Stainless steel
• Suitable for Washdown: Yes
• Weight: 1.0 lb
