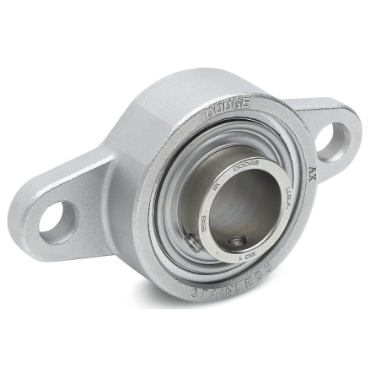

Dodge F2B-SCFS-012-SHFS Food Grade Flange-Mount Ball Bearing Unit - 3/4 in Bore Replacement MPN

Product Description

The Dodge F2B-SCFS-012-SHFS is a flange-mount ball bearing unit designed for various applications requiring reliable performance. This unit features a three-quarter inch bore and a two-bolt flange mount, making it suitable for tight spaces and ease of installation. The stainless steel housing enhances durability and resistance to corrosion, ideal for food processing and clean environments.

• Flange-mount design for easy installation
• Triple-lip contact seal for protection against contaminants
• Standard duty for general applications

Product Highlights

Suitable for standard duty applications, the F2B-SCFS-012-SHFS provides effective sealing and reliable lubrication.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 3/4 in
• Bore Length: 1.23 in
• Bearing Material: Stainless Steel
• Duty Type: Standard Duty
• Seal Type: Triple-Lip Contact Seal
• Maximum Speed: 950 rpm
• Radial Static Load Capacity: 1482 lbf
• Radial Dynamic Load Capacity: 2899 lbf
