Dodge F2B-SCED-115 Cast Iron Greasable 2-Bolt Flange Unit

Product Description

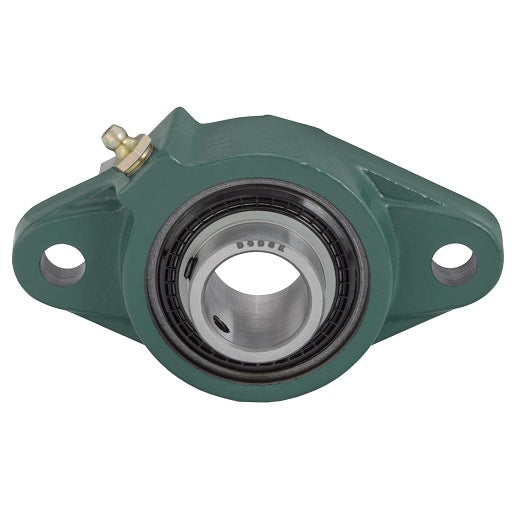

The Dodge F2B-SCED-115 is a Cast Iron Greasable 2-Bolt Flange Unit designed for robust applications. This unit features a shaft diameter of one point nine three eight inches and is greasable for maintenance ease. The cast iron housing construction offers durability and reliability in various industrial settings.

• Shaft Diameter: 1.938 inches
• 2-Bolt Flange
• Greasable for easy maintenance

Product Highlights

This product is suitable for heavy-duty applications requiring reliable support and lubrication. The Dodge F2B-SCED-115 fits standard mounting requirements and provides strong performance under various loads.

Product Information

Standard Information

• Brand: Dodge
• Part Number: F2B-SCED-115

Technical Specifications

• Bore Length: 1.94 inches
• Housing Material: Cast Iron
• Dynamic Load Capacity: 7891 lbf
• Static Load Capacity: 5213 lbf
• Lubrication: Grease
• Max Speed: 3000 rpm
• Grease Name: Mobilith SHC PM 220
• Flange Type: 2-Bolt Flange
