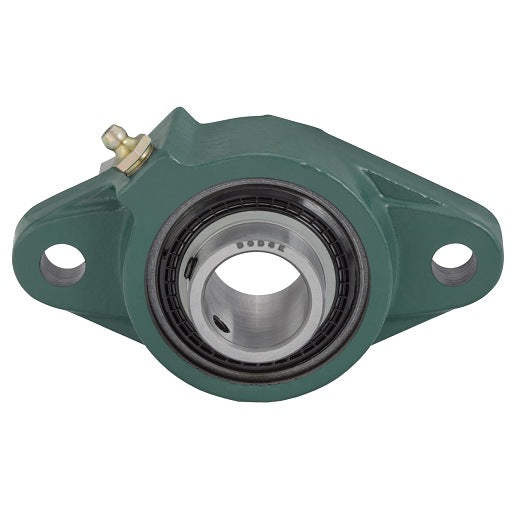

Dodge F2B-SCED-100 Cast Iron Greasable 2-Bolt Flange Unit

Product Description

The Dodge F2B-SCED-100 is a cast iron greasable 2-bolt flange unit. It features a one-inch shaft diameter and a solid housing construction. This product is suitable for various applications where reliable support and motion are necessary.

• 1 inch shaft diameter
• 2-bolt flange design
• Greasable feature for extended maintenance

Product Highlights

This flange unit ensures durability and ease of maintenance, making it a reliable choice for professionals in various trades.

Product Information

Standard Information

• Brand: Dodge
• Part Number: F2B-SCED-100

Technical Specifications

• Speed [Max]: 4500 rpm
• Static Load Capacity: 1769 lbf
• Expansion Capability: Fixed
• Flange Type: 2-Bolt Flange
• Locking Device: Setscrew
• Ball Bearing Series: 205 Series
• Grease Name: Mobilith SHC PM 220
• Housing Material: Cast Iron
• Shaft Diameter: 1 inch
• Bore Length: 1.34 inches
• Suitable for High Temperature: No
• Dynamic Load Capacity: 3146 lbf
• Weight: 1.3 lb
