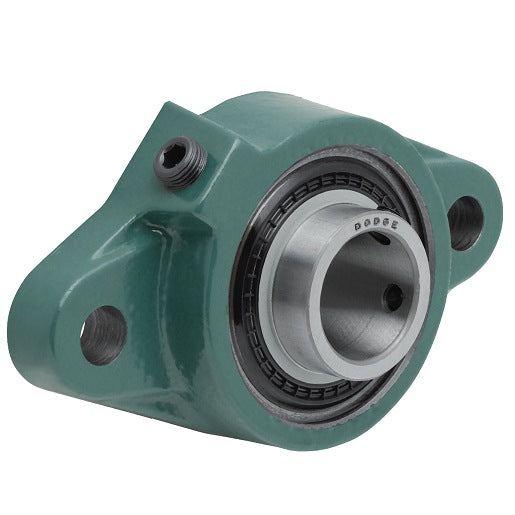

Dodge F2B-SC-113-NL Flange-Mount Ball Bearing Unit 1-13/16 in Bore 2-Bolt Flange Mount

Product Description

The Dodge F2B-SC-113-NL is a flange-mount ball bearing unit designed for reliable performance in various applications. This unit features a bore diameter of one and thirteen-sixteenths inches, making it suitable for a range of mounting needs. The unit has a two-bolt flange mount and features a set screw locking system for secure attachment.

• Ball type bearing for smooth operation
• Cast iron housing for durability
• Standard duty rating for versatility

Product Highlights

This bearing unit is ideal for standard-duty applications where stability and reliability are essential. Its design ensures minimal maintenance while ensuring optimal operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-SC-113-NL

Technical Specifications

• Bore Diameter: 1-13/16 inches
• Bore Length: 1.94 inches
• Duty Type: Standard Duty
• Type of Bearing: Ball
• Radial Static Load Capacity: 4906 lbf
• Radial Dynamic Load Capacity: 7891 lbf
• Shaft Attachment: Setscrew
• Expansion Capability: Non-Expansion (Fixed)
