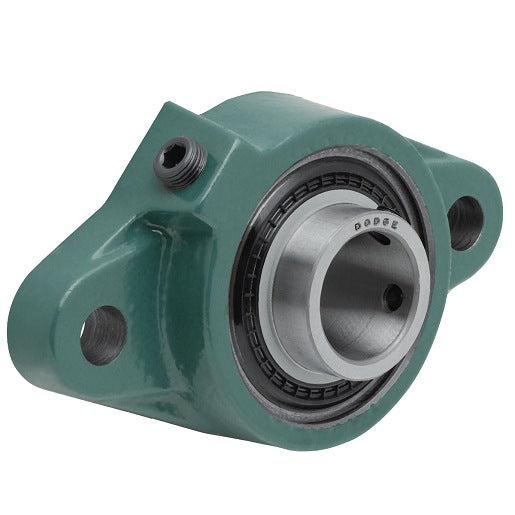

Dodge F2B-SC-111-NL Cast Iron 2-Bolt Flange Unit

Product Description

The Dodge F2B-SC-111-NL is a cast iron 2-bolt flange unit designed for reliable performance in various applications. This unit features a shaft diameter of one point six eight eight inches and a solid housing construction that provides strength and durability. The unit is suitable for standard duty with a fixed expansion capability.

• 1.688 inches Shaft Diameter
• 2-Bolt Flange Configuration
• Cast Iron Housing Material

Product Highlights

This flange unit is built for efficiency and long-term use in mechanical systems. The grease lubrication ensures smooth operation while maintaining effective sealing from contaminants.

Product Information

Standard Information

• Brand: Dodge
• Part Number: F2B-SC-111-NL

Technical Specifications

• Housing Construction: Solid
• Flange Type: 2-Bolt Flange
• Bore Length: 1.94 inches
• Max Speed: 300 rpm
• Dynamic Load Capacity: 7891 lbf
• Static Load Capacity: 4906 lbf
• Bearing Type: Ball
• Insert Material: Steel
• Grease Name: Unirex N2
• Shaft Diameter: 1.688 inches
• Locking Device: Setscrew
• Weight: 4.38 LB
• EAN or UPC: 782476244002
