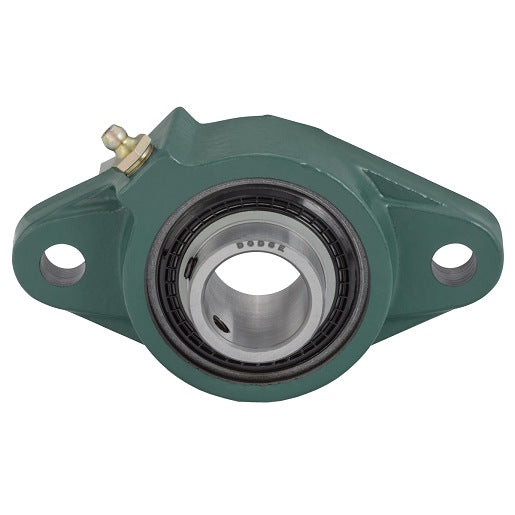

Dodge F2B-SC-108 Cast Iron Greasable 2-Bolt Flange Unit

Product Description

The Dodge F2B-SC-108 is a cast iron greasable 2-bolt flange unit designed for reliable operation in various applications. This unit features a shaft diameter of one and a half inches and a solid housing construction that ensures durability and performance.

• Dynamic load capacity of 7332 lbf
• Easy to maintain with greasable design
• Suitable for standard duty applications

Product Highlights

This flange unit is suitable for fixed expansion applications and is designed for effective lubrication with grease. The use of cast iron material provides strength and stability, making it perfect for mounting in various settings.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-SC-108

Technical Specifications

• Dynamic Load Capacity: 7332 lbf
• Static Load Capacity: 4475 lbf
• Bore Length: 1.94 inches
• Flange Type: 2-Bolt Flange
• Bearing Type: Ball
• Locking Device: Setscrew
• Speed [Max]: 3500 rpm
• Insert Material: Steel
