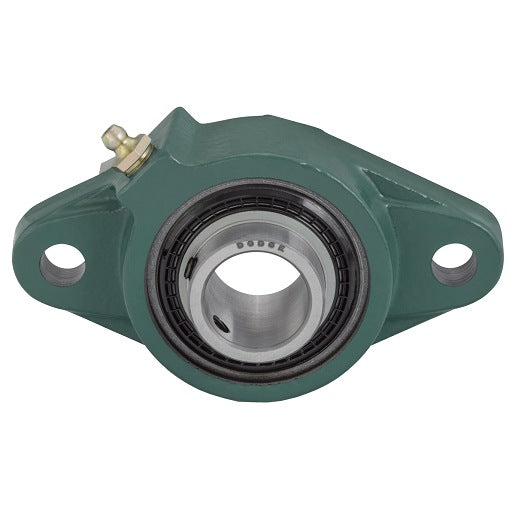

Dodge F2B-SC-104 Cast Iron Greasable 2-Bolt Flange Unit

Product Description

The Dodge F2B-SC-104 is a cast iron greasable 2-bolt flange unit designed for reliable performance in various applications. It features a shaft diameter of one point twenty-five inches, a static load capacity of three thousand four hundred sixty-one pounds, and a dynamic load capacity of five thousand seven hundred fifty-nine pounds.

• Greasable design enhances longevity
• Solid construction with cast iron housing
• Compatible with standard duty applications

Product Highlights

This unit is ideal for applications requiring strong support and lubrication. It offers secure installation with its setscrew locking mechanism, ensuring stability during operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-SC-104

Technical Specifications

• Shaft Diameter: 1.25 inches
• Dynamic Load Capacity: 5759 lbf
• Static Load Capacity: 3461 lbf
• Ball Bearing Series: 207 Series
• Housing Material: Cast Iron
• Lubrication: Grease
• Maximum Speed: 3500 rpm
• Bore Length: 1.71 inches
