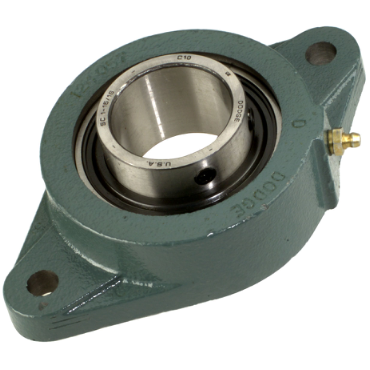

Dodge F2B-SC-008L Flange-Mount Ball Bearing Unit - 1/2 in Bore, 2-Bolt Flange Mount

Product Description

Dodge F2BSC008L is a flange-mount ball bearing unit designed for efficient operation. With a bore diameter of half an inch, it features a two-bolt flange mount and is constructed from cast iron. This unit is suitable for standard duty applications and includes a single lip contact seal for better durability.

• Non-expansion bearing designed for fixed applications.
• Maximum speed rating of five thousand rpm.
• Set screw locking device ensures secure attachment.

Product Highlights

Utilize this bearing unit in various mechanical systems where reliability and efficiency are essential. Its straight bore type and robust design make it a suitable choice for many industrial applications.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: F2BSC008L
• Bore Diameter: 1/2 in
• Bore Length: 1.23 in
• Weight: 1.985 lbs
• Height: 1.85 in
• Width: 11.3 in
• Length: 3.4 in
• Radial Static Load Capacity: 1482 lbf
• Radial Dynamic Load Capacity: 2899 lbf
• Seal Type: Single Lip Contact Seal
• Duty Type: Standard Duty
• Expansion Type: Non-Expansion Bearing
• Insert Material: Steel
• Lubrication: Grease
• Grease Type: Unirex N2
• Locking Device: Set Screw
• Housing Material: Cast Iron
