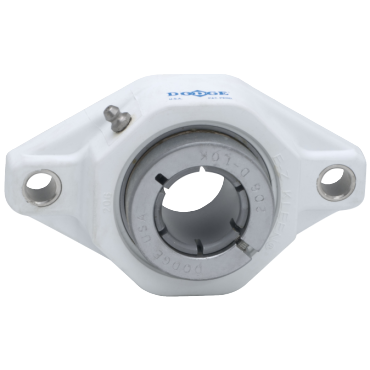

Dodge F2B-DLEZ-107-PCR Flange-Mount Ball Bearing Unit - 1-7/16 in Bore, 2-Bolt Flange Mount, Clamp Collar Locking, Polymer Housing Material, Non-Expansion Bearing (Fixed)

Product Description

The Dodge F2B-DLEZ-107-PCR is a flange-mount ball bearing unit designed for reliable performance in various applications. It features a bore size of one and seven-sixteenths in and a two-bolt flange mount configuration, ensuring easy installation and secure mounting. The product uses a clamp collar for locking, providing stability during operation. The polymer housing material is durable and suitable for many environments.

• Bearing series: 207 series
• Suitable for washdown environments
• Grease type: MobilGrease FM222

Product Highlights

This bearing unit is designed for non-expansion applications and includes a triple-lip contact seal for optimal protection against contamination. Its construction allows for grease lubrication, making it ideal for various industrial settings.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: F2BDLEZ107PCR
• Bore diameter: 1-7/16 in
• Bore length: 1.75 in
• Length: 6 in
• Width: 5.4 in
• Height: 2.1 in
• Weight: 2.05 lbs
• Seal type: Triple-Lip Contact Seal
• Expansion type: Non-Expansion Bearing (Fixed)
• Locking device: Clamp Collar
• Relubricatable: Yes
• Insert material: Plated Steel
• Housing material: Polymer
• Shaft attachment: Clamp Collar
• Housing construction: Solid
• Suitable for high temp app: No
• Sensor ready: Adapter Required
