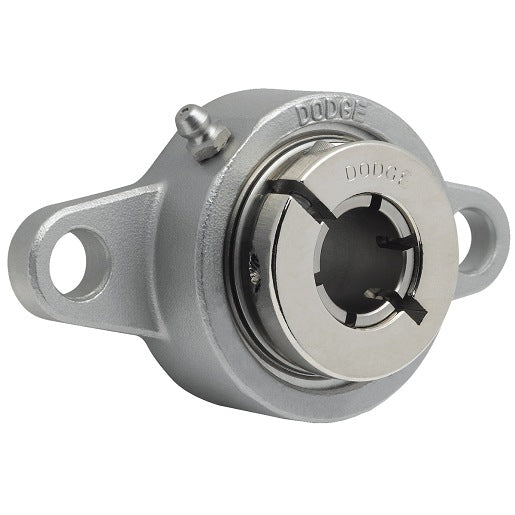

Dodge F2B-DLEZ-012-SHCR Stainless Steel Greasable 2-Bolt Flange Unit

Product Description

The Dodge F2B-DLEZ-012-SHCR is a stainless steel greasable 2-bolt flange unit. This unit is designed for durability and easy installation.

• 0.75 inches shaft diameter
• Constructed with solid housing
• Features a clamp collar locking mechanism

Product Highlights

This flange unit is suited for various industrial applications. It provides reliable support and alignment for rotating shafts.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-DLEZ-012-SHCR

Technical Specifications

• Insert Material: Plated Steel
• Flange Type: 2-Bolt Flange
• Housing Material: Stainless Steel
• Suitable For Washdown: Yes
• Greasable: Yes
• Grease Name: MobilGrease FM222
• Housing Construction: Solid
• Lubrication: Grease
• Sensor Ready: Adapter Required
• Bearing Type: Ball
• Weight: 1.1 LB
• Bore Length: 1.28 inches
• Ball Bearing Series: 204 Series
• Locking Device: Clamp Collar
• Shaft Diameter: 0.75 inches
• Bolt Diameter: 0.375 inches
