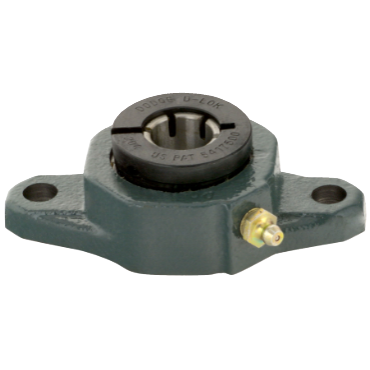

Dodge F2B-DL-115 Flange-Mount Ball Bearing Unit 1-15/16 in Bore 2-Bolt Flange Mount Replacement MPN 128771

Product Description

The Dodge F2BDL115 is a flange-mount ball bearing unit designed for various applications requiring reliable support and rotation. This unit features a one and fifteen-sixteenths inch bore and a two-bolt flange mount for quick installation. Constructed from durable cast iron, it is well-suited for environments where strength and stability are essential.

• Bore Diameter: 1-15/16 in
• Maximum Speed: 4500 rpm
• Locking Device: Clamp Collar

Product Highlights

This flange bearing unit is ideal for fixed applications and offers efficient lubrication through grease. The single lip contact seal helps protect against contaminants, ensuring long-lasting operation.

Product Information

Standard Information

• Brand: Dodge
• Country of Origin: United States

Technical Specifications

• MPN: F2BDL115
• Bore Length: 2.01 in
• Weight: 6.02 lbs
• Seal Type: Single Lip Contact Seal
• Insert Material: Steel
• Radial Dynamic Load Capacity: 7891 lbf
• Radial Static Load Capacity: 5213 lbf
• Grease Type: Unirex N2
