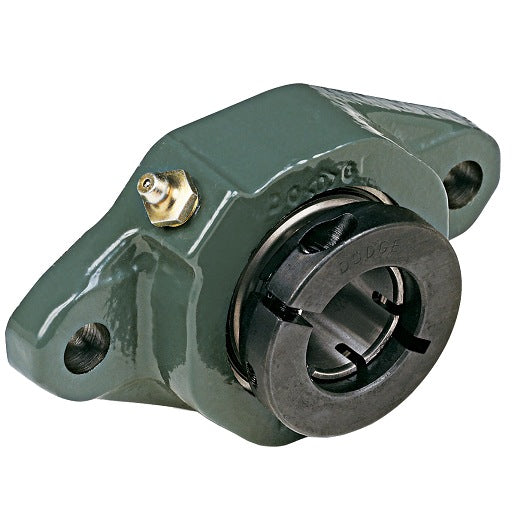

Dodge F2B-DL-107-NL Flange-Mount Ball Bearing Unit 1-7/16 in Bore

Product Description

The Dodge F2B-DL-107-NL is a reliable flange-mount ball bearing unit. It features a bore size of one and seven-sixteenths inches and a two-bolt flange mount. This flange-bearing is constructed from cast iron material, ensuring durability in various applications.

• Clamp collar locking mechanism for secure attachment.
• Single lip contact seal for effective sealing.
• Designed for non-expansion bearing applications.

Product Highlights

This bearing unit is suitable for a range of industrial uses, providing essential support in mechanical systems.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-DL-107-NL

Technical Specifications

• Bore Diameter: 1-7/16 in
• Bore Length: 1.75 in
• Maximum Speed: 5500 rpm
• Weight: 3.085 lbs
• Width: 11.4 in
• Height: 2.4 in
• Length: 5.45 in
• Housing Material: Cast Iron
• Seal Type: Single Lip Contact Seal
• Radial Dynamic Load Capacity: 5759 lbf
• Radial Static Load Capacity: 3461 lbf
