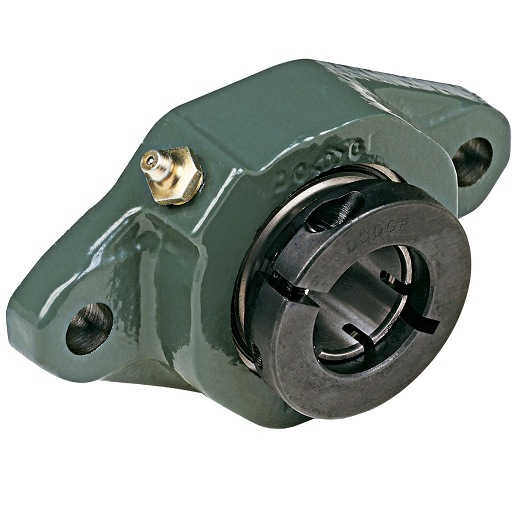

Dodge F2B-DL-104S-NL Flange-Mount Ball Bearing Unit - 1-1/4 in Bore, 2-Bolt Flange Mount, Clamp Collar Locking

Product Description

The Dodge F2B-DL-104S-NL is a flange-mount ball bearing unit designed for efficient performance. This unit features a one and one-quarter-inch bore size and a two-bolt flange mount. The solid cast iron housing ensures durability and reliable operation.

• Clamp collar locking device
• Fixed non-expansion type
• Single lip contact seal for added protection

Product Highlights

The F2B-DL-104S-NL is ideal for applications requiring robust mounting solutions. It accommodates a shaft diameter of one and one-quarter inches and features a bolt diameter of zero point four three eight inches.

Product Information

Standard Information

• Brand: Dodge
• MPN: F2B-DL-104S-NL

Technical Specifications

• Bore Diameter: 1-1/4 in
• Bore Length: 1.56 in
• Weight: 1.58 lbs
• Housing Material: Cast Iron
• Lubrication: Grease
• Shaft Diameter: 1.25 in
• Flange Type: 2-Bolt Flange
• Locking Device: Clamp Collar
