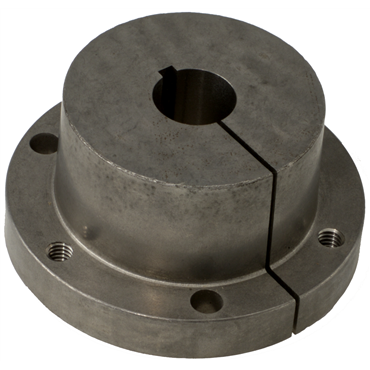

Dodge E28MM8X3.3MM QD Bushing

Product Description

The Dodge E28MM8X3.3MM is a QD Bushing designed for precision applications. This product features a bore size of twenty-eight millimeters, ensuring compatibility with various machinery.

• Large diameter of three point eight three four inches
• Torque capacity up to twenty thousand lb/in
• Made from ductile iron for durability

Product Highlights

This QD Bushing is ideal for securing components in various mechanical systems, providing reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• Part #: 100945605

Technical Specifications

• Large Diameter: 3.834 inches
• Flange Thickness: 3/4 inches
• Torque Capacity: 20000 lb/in
• Overall Length: 2.65625 inches
• Material: Ductile Iron
• Wrench Torque: 60 lbf
• Capscrew Size: 1/2-13 x 2 3/4 inches
• Bushing Series: E
• Keyway Size: 8 mm x 3.5 mm
• Inch/Metric: Metric
• Bore Range [Max]: 3.5 inches
• Bore Size: 1.102 inches - 28 mm
• Bolt Circle Dia.: 5 inches
• E (Knuckle Width): 1.90625 inches
• Length Through Bore: 2.65625 inches
• Cap Screws: 3
• Bore Range [Min]: 0.875 inches
• Weight: 10.2 lb
• EAN or UPC: 782475899128
