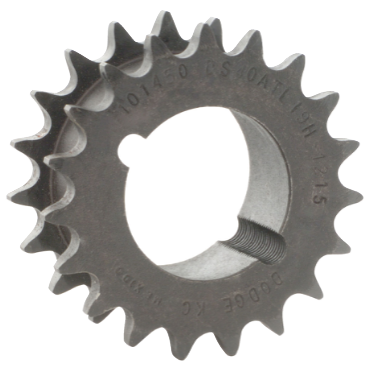

Dodge DS40ATL19H-1215 Taper Lock Roller Chain Sprocket

Product Description

The Dodge DS40ATL19H-1215 is a Taper Lock Roller Chain Sprocket designed for efficient power transmission in various mechanical applications. This sprocket is constructed from steel, ensuring durability and reliability.

• Material: Steel
• Bushing Type: Taper Lock
• No. of Teeth: Nineteen

Product Highlights

This sprocket features hardened teeth for extended wear and tear. It has a double single strand design and accommodates a chain pitch of zero point five inches. The sprocket is ideal for use in various industrial machinery, providing optimal performance.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101848698

Technical Specifications

• Type: A-Double Single
• Chain No.: 40
• Outside Diameter: three point two nine six inches
• Pitch Diameter: three point zero three eight inches
• Width Across Teeth: zero point two eight four inches
• Length Through Bore: one point four one inches
• Bushing Bore [Min]: zero point five inches
• Bushing Bore [Max]: one point two five inches
• Weight: one point two seven four pounds
• EAN or UPC: 782475243099
