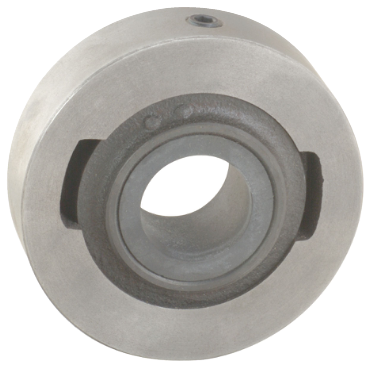

Dodge CYLLT7100 Cartridridge Unit; Cast Iron; Sleeve Bearing

Product Description

The Dodge CYLLT7100 is a cast iron sleeve bearing designed for durability and performance. This cartridge unit is self-lubricated and unsealed, making it suitable for various applications. Its fixed or expansion design allows flexibility in use.

• Manufactured from high-quality cast iron
• Self-lubricated for reduced maintenance
• Compatible with fixed or expansion designs

Product Highlights

This bearing unit is ideal for high-temperature applications and can handle a wide temperature range from -40 degrees Fahrenheit to 700 degrees Fahrenheit.

Product Information

Standard Information

• Part Number: 101875049
• Brand: Dodge

Technical Specifications

• Temperature Range [Min]: -40 °F
• Temperature Range [Max]: 700 °F
• Bearing Type: Sleeve Bearing
• Outer Diameter: 3.125 inches
• Shaft Diameter: 1.000 inches
• Overall Width: 1.0625 inches
• Housing Width: 27/32 inches
• Dynamic Load Rating: 1500 lbf
• Axial Load: 75 lbf
• Housing Material: Cast Iron
• Relubricatable: No
