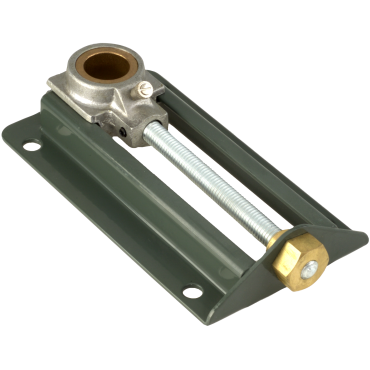

Dodge BOTU100X4 Bronzoil Series Take-Up Unit

Product Description

The Dodge BOTU100X4 is a Bronzoil Series Take-Up Unit designed for light machinery applications. This unit features a self-oiling bushing that feeds oil directly to the shaft, ensuring efficient operation. The split pressed steel housing provides a durable construction suitable for various environments.

• Self-oiling bushing feeds oil to shaft
• 4 inch travel
• Unsealed design

Product Highlights

This take-up unit is ideal for light machinery, offering reliability and ease of installation. Its static self-aligning feature ensures proper alignment during operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: BOTU100X4

Technical Specifications

• Locking Device: No Locking Device
• Lubrication: Non-Lubricated
• Housing Material: Cast Iron
• Seal Type: Unsealed
• Take-Up Type: Narrow Slot
• Bolt Size: 3/8 inch
• Frame Material: Steel
• Travel: 4 inch
• Frame Height: 4.25 inch
• Shaft Diameter: 1 inch
• Length Through Bore: 1.5625 inch
• Bearing Type: Bronzoil
• Bolt Hole Spacing - Length: 5.75 inch
• Bolt Hole Spacing - Height: 3.5 inch
• Frame Length: 7.625 inch
• Weight: 1.93 LB
• EAN or UPC: 782475018062
