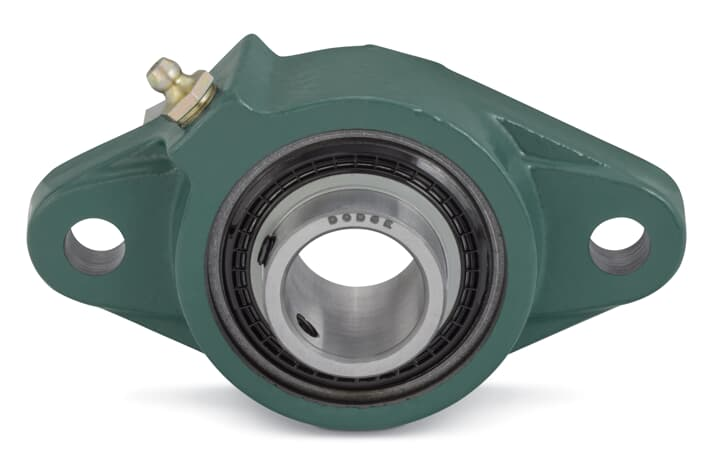

Dodge Baldor F2B-SC-102 Bore Diameter: 1-1/8 Inch Housing: 2-Bolt Flange Locking: Set Screw

Product Description

The Dodge Baldor F2B-SC-102 is a two-bolt flange ball bearing with set screw locking. It is suitable for general-purpose applications. This bearing has a bore diameter of one and one-eighth inches, allowing it to fit onto standard shafts effectively. The design promotes optimal load distribution and contributes to the longevity of machinery.

• Bore Diameter: 1-1/8 Inch - Fits standard shafts securely.
• Housing: 2-Bolt Flange - Simplifies installation and alignment.
• Locking: Set Screw - Ensures stable positioning during operation.

Product Highlights

The Dodge Baldor bearing features DualGuard seals with flingers and a solid cast iron housing, offering durability and reliability.

Product Information

Standard Information

• Application: General Purpose
• Ball bearing series: 206 series

Technical Specifications

• Bolt Diameter: 0.4375 inches
• Bore Length: 1.5200 inches
• Duty: Standard Duty
• Finish: Powder coated
• Greasable: Yes
• Housing Material: Cast iron
• I.D.: 1-1/8 inches
• Insert Material: Steel
• Locking: Set screw
• Lubrication Type: Grease
• Max RPM: 6500 rpm
• Seal Option: DualGuard seals with flingers
