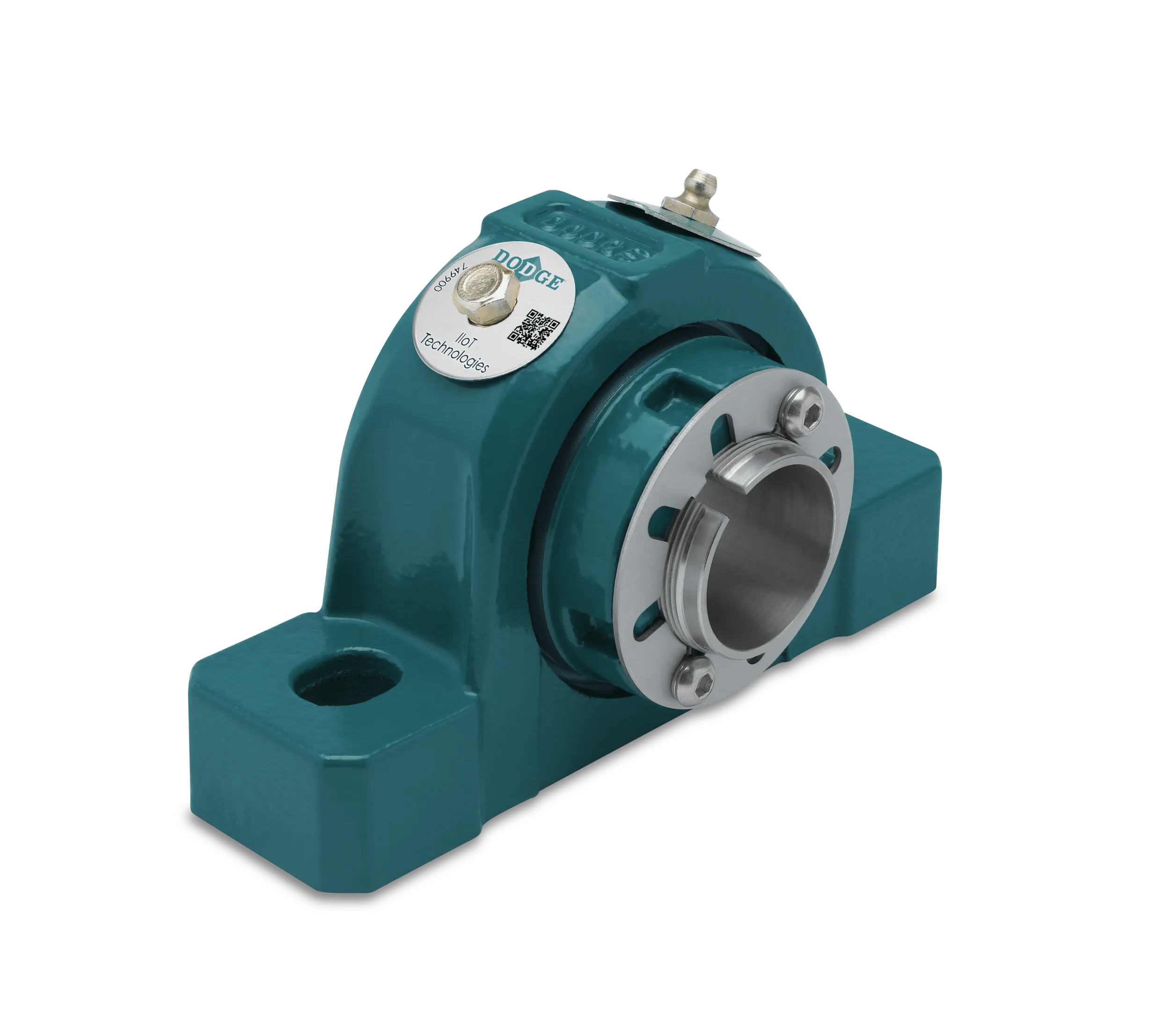

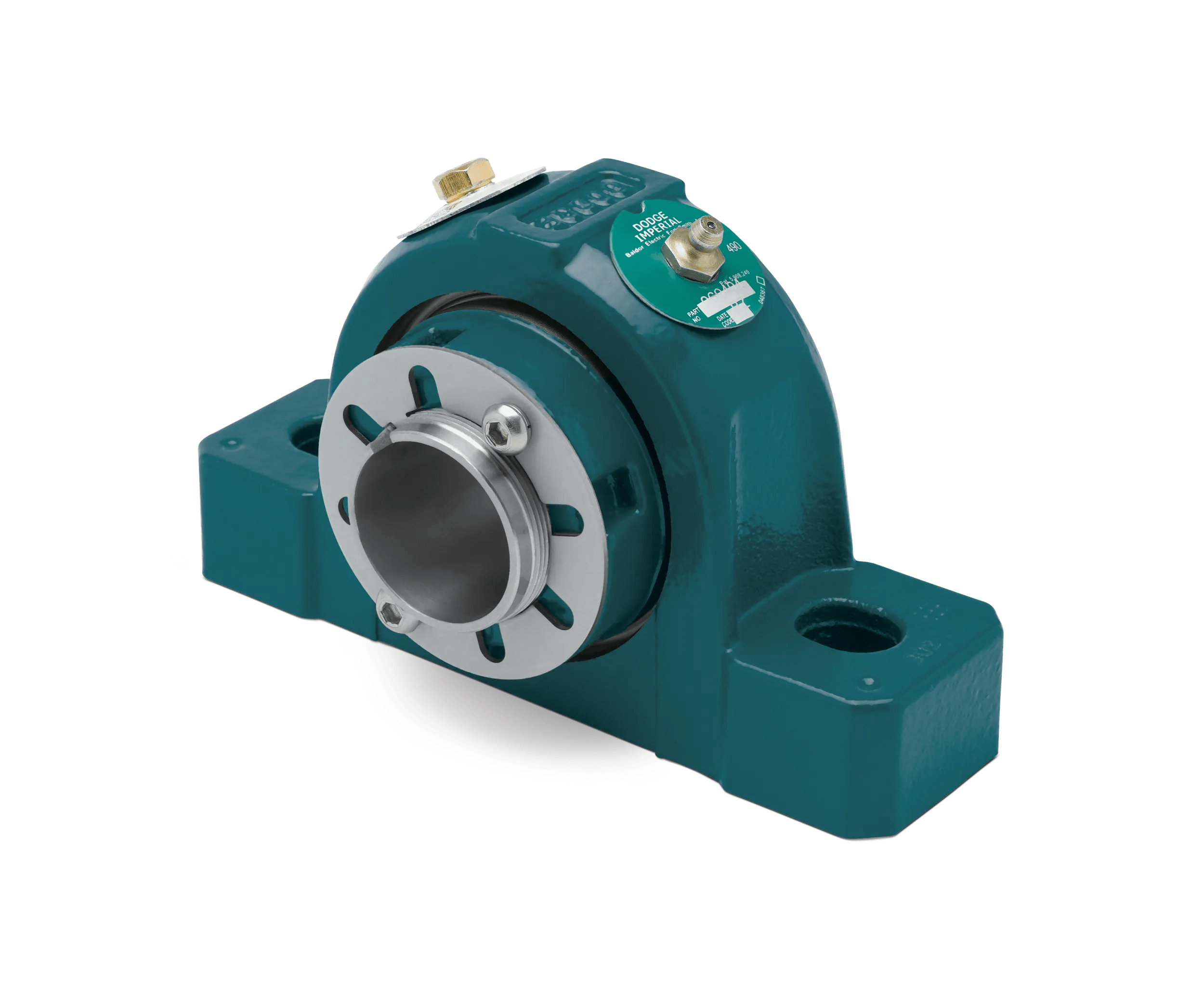

Dodge Baldor 069496 Pillow Block Bearing 2 3/16 Bore

Product Description

The Dodge Baldor 069496 is a pillow block bearing designed for supporting rotating shafts in various industrial applications. This bearing features a double-row spherical roller design and an efficient adapter mounting system that allows for easy installation and removal.

• Engineered with a 2-bolt mounting configuration for secure attachment.
• Includes a labyrinth sealing system to prevent contamination.
• Constructed from durable cast iron and steel.

Product Highlights

This bearing provides reliable performance with a focus on simplicity and effectiveness in mounting and maintenance tasks.

Product Information

Standard Information

• Brand: Dodge Baldor
• MPN: 069496

Technical Specifications

• Bearing Type: Spherical roller
• Mounting Type: 2-Bolt Base, Push-Pull Adapter
• Bore Diameter: 2-3/16 in
• Shaft Diameter: 2.1875 in
• I.D.: 2 3/16 in
• Base to Center Height: 2.5000 in
• Overall Length: 8.38 in
• Overall Width: 3.03 in
• Overall Height: 5 in
• Bore Length: 3.0300 in
• Base Width: 2.63 in
• Dynamic Load Capacity: 27000 lb
• Static Load Capacity: 29000 lb
• Maximum Speed: 4500 rpm
• Material: Cast iron
• Insert Material: Steel
• Seal Type: Labyrinth
• Greaseable: Yes
