Dodge 9SX1 1/4FLANGE | D-FLEX Coupling

Product Description

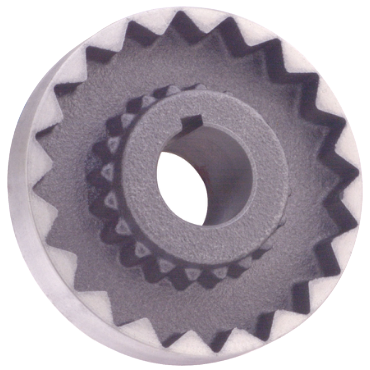

Dodge 9SX1 1/4FLANGE is a D-FLEX coupling designed for effective mechanical power transmission. This coupling is ideal for connecting shafts with a bore size of one and a quarter inches. The unit features interchangeable components that simplify installation and create a secure connection without the need for lubrication.

• Interchangeable components for easy installation.
• No lubrication is needed.
• Made from durable cast iron.

Product Highlights

The Dodge 9SX1 1/4FLANGE coupling is built for reliable performance in various industrial applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 9SX1 1/4FLANGE

Technical Specifications

• Bore Type: Finished Bore
• Bore Size: 1.250 in - 1 1/4 in
• Set Screw: Yes
• Hub Length: 3/4 in
• Outside Dia.: 6.35 in
• Hub Dia.: 3 5/8 in
• Keyway Size: 1/4 x 1/8
• RPM [Max]: 3,750 rpm
• Length Through Bore: 2.40625 in
• Material: Cast Iron
• Lock Type: Setscrew
• Weight: 7.88 LB
• EAN or UPC: 782475875184
