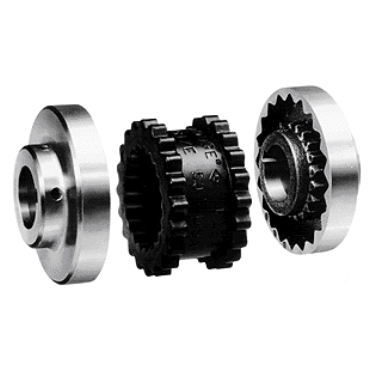

Dodge 9NELEMENT 9N Element D-Flex Coupling Insert

Product Description

The Dodge 9NELEMENT is a D-Flex coupling insert designed for effective power transmission and vibration dampening. This size 9 type N coupling sleeve is ideal for various mechanical applications.

• Interchangeable components for quick installation
• Snug fit without lubrication required
• Rounded edges for reduced stress buildup

Product Highlights

This coupling insert provides a clean and quiet performance, ensuring efficient operation while minimizing wear.

Product Information

Standard Information

• Brand: Dodge
• MPN: 9NELEMENT

Technical Specifications

• Torsional Stiffness: 6875 Inch Pounds/Radian
• Torque Rating [Max]: 1,800 in lb
• Outside Diameter: 6 inches
• Temperature Range [Min]: -30 °F
• Max RPM: 3,750 rpm
• Color: Black
• HP @ RPM: 50.4 hp @ 1800 rpm
• Sleeve Type: N
• Material: Neoprene
• Width: 3 inches
• Coupling Size: 9
• Temperature Range [Max]: 200 °F
• Insert Style: Two Piece
• Weight: 2.39 LB
• EAN or UPC: 782475876235
