Dodge 9JESELEMENT D-Flex Coupling Insert Power Size 9

Product Description

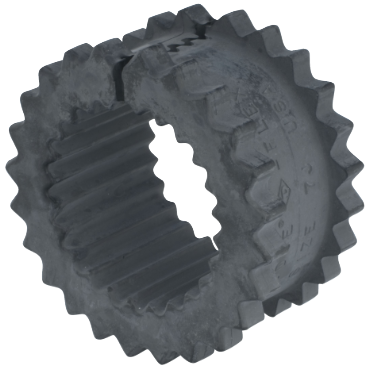

The Dodge 9JESELEMENT is a D-Flex Coupling Insert designed for quick and reliable installation. This coupling insert slides into position, ensuring a snug fit without the need for lubrication. The design eliminates metal-to-metal contact, providing a clean and quiet operation.

• Interchangeable components
• No lubrication necessary
• Rounded edges for tooth engagement

Product Highlights

This product features interchangeable components to ease installation and offers reduced stress buildup at the edges for increased durability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943078

Technical Specifications

• Material: EPDM
• Coupling Size: 9
• Insert Style: One Piece Split
• Color: Black
• Torque Rating (Max): 1,800 in lb
• Sleeve Type: JES
• Outside Diameter: 6 in
• Maximum RPM: 3,750 rpm
• Temperature Range (Max): 275 °F
• Width: 3 in
• Temperature Range (Min): -30 °F
• Torsional Stiffness (Inches Pounds/Radian): 6,875
• HP @ RPM: 50.4 hp @ 1800 rpm
• Weight: 1.76 lb
• EAN or UPC: 782475874194
