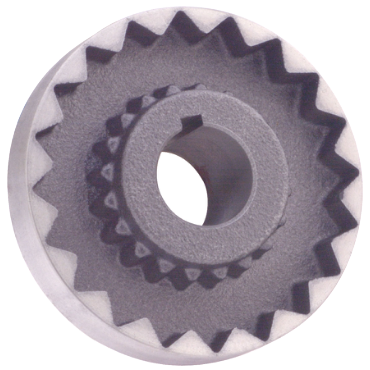

Dodge 8SX1 1/2FLANGE D-FLEX Coupling Flange 1.5 in Bore

Product Description

Dodge 8SX1 1/2FLANGE is a D-FLEX coupling flange that features a bore size of one and a half inches. This flange is designed for quick and easy installation due to its interchangeable components, ensuring that technicians can work efficiently. The flange slides into position, providing a snug fit without requiring lubrication, making it suitable for a variety of applications in mechanical power transmission.

• Interchangeable components
• Snug fit with no lubrication required
• Made from cast iron for durability

Product Highlights

This flange provides clean and quiet operation, eliminating metal-to-metal contact and enhancing performance.

Product Information

Standard Information

• Brand: Dodge
• MPN: 8SX1 1/2FLANGE

Technical Specifications

• Hub Length: 3/4 in
• Coupling Size: 8S
• Hub Diameter: 3 1/4 in
• Outside Diameter: 5.45 in
• Length Through Bore: 2.09375 in
• Max RPM: 4,500 rpm
• Material: Cast Iron
• Keyway Size: 3/8 x 3/16
• Lock Type: Setscrew
• Bore Size: 1.500 in - 1 1/2 in
• Bore Type: Finished Bore
• Weight: 4.65 lb
• EAN or UPC: 782475872749
