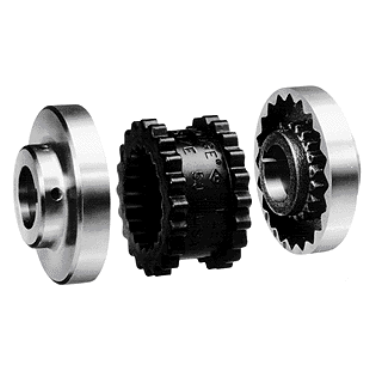

Dodge 8JNELEMENT D-Flex Coupling Insert

Product Description

The Dodge 8JNELEMENT is a D-Flex coupling insert designed for efficiency and reliability in mechanical applications. This coupling insert features interchangeable components for quick installation. It fits snugly into place without the need for lubrication, ensuring a metal-to-metal free contact for reduced wear and noise. The rounded edges allow for full tooth engagement, promoting even distribution of load and minimizing stress buildup at the edges.

• Size 8, Type JN coupling sleeve.
• No lubrication required for easy maintenance.
• Clean, quiet performance with even load distribution.

Product Highlights

This product is suitable for various applications, especially for connecting shafts in machinery that require flexibility and vibration dampening. Its design allows it to withstand a temperature range from minus thirty degrees Fahrenheit to two hundred degrees Fahrenheit, making it adaptable to different operating environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943063

Technical Specifications

• Sleeve Type: JN
• Temperature Range [Max]: 200 °F
• Temperature Range [Min]: -30 °F
• HP @ RPM: 32.4 hp @ 1800 rpm
• Coupling Size: 8
• Width: 2.5 inches
• RPM [Max]: 4500 rpm
• Color: Black
• Torque Rating [Max]: 1135 in lb
• Outside Diameter: 5.0625 inches
• Material: Neoprene
• Torsional Stiffness: 4335 inch pounds/radian
• Insert Style: One Piece
• Weight: 1.28 pounds
• EAN or UPC: 782475872022
