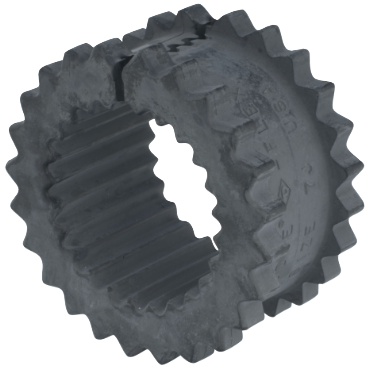

Dodge 8JESELEMENT D-Flex Coupling Insert each

Product Description

The Dodge 8JESELEMENT is a D-Flex Coupling Insert designed for reliable function in mechanical applications. It features interchangeable components for easy installation, allowing it to slide into position snugly without the need for lubrication.

• Interchangeable components for quick installation
• No metal-to-metal contact for reduced wear
• Rounded edges ensure full tooth engagement

Product Highlights

This coupling insert ensures clean and quiet performance with even load distribution and reduced stress buildup at the edges, making it suitable for various industrial applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943076

Technical Specifications

• Torque Rating [Max]: 1,135 in lb
• Outside Diameter: 5.0625 in
• Color: Black
• HP @ RPM: 32.4 hp @ 1800 rpm
• Torsional Stiffness: 4335
• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 275 °F
• Width: 2.5 in
• Sleeve Type: JES
• Coupling Size: 8
• RPM [Max]: 4,500 rpm
• Insert Style: One Piece Split
• Material: EPDM
• Weight: 1.06 lb
• EAN or UPC: 782475876402
