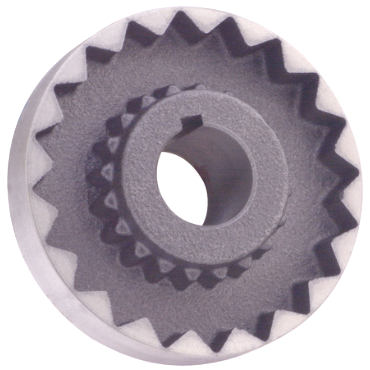

Dodge 7SX13/8FLANGE D-FLEX Coupling

Product Description

The Dodge 7SX13/8FLANGE is a D-FLEX coupling designed for mechanical power transmission applications. This coupling is engineered to provide a reliable connection between shafts while minimizing noise and wear.

• Interchangeable components allow for quick installation.
• No lubrication is necessary, reducing maintenance time.
• Finished bore design ensures a snug fit without metal-to-metal contact.

Product Highlights

This coupling is suitable for various applications, including motors and pumps, and is ideal for use in environments where noise reduction is critical.

Product Information

Standard Information

• Brand: Dodge
• MPN: 7SX13/8FLANGE

Technical Specifications

• Bushing Type: N/A
• Hub Diameter: 2.8125 inches
• Coupling Size: 7S
• Hub Length: 0.6875 inches
• Keyway Size: 0.3125 x 0.15625 inches
• Material: Cast Iron
• Max RPM: 5250 rpm
• Set Screw: Yes
• Bore Type: Finished Bore
• Length Through Bore: 1.84375 inches
• Bore Size: 1.375 inches
• Lock Type: Setscrew
• Outside Diameter: 4.625 inches
• Weight: 3.02 lbs
• EAN or UPC: 782475874477
