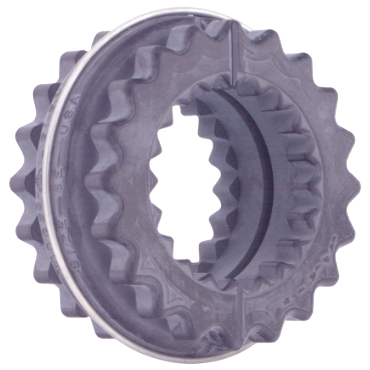

Dodge 7EELEMENT D-Flex Coupling Insert 7 E 100943214

Product Description

The Dodge 7EELEMENT is a D-Flex Coupling Insert designed to provide effective performance in various industrial applications. This coupling insert features interchangeable components for easy installation.

• Interchangeable components for quick installation
• No lubrication required, ensuring clean operation
• No metal-to-metal contact for reduced wear

Product Highlights

The Dodge 7EELEMENT ensures clean, quiet operation and features rounded edges for full tooth engagement.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943214

Technical Specifications

• Material: EPDM
• Coupling Size: 7
• Torsional Stiffness: 2769 Inch Pounds/Radian
• Torque Rating [Max]: 725 in lb
• RPM [Max]: 5,250 rpm
• HP @ RPM: 21.60 hp @ 1800 rpm
• Width: 2 3/16 in
• Insert Style: Two Piece
• Temperature Range [Max]: 275 °F
• Temperature Range [Min]: -30 °F
• Outside Diameter: 4.6875 in
• Weight: 0.85 LB
• EAN or UPC: 782475872206
