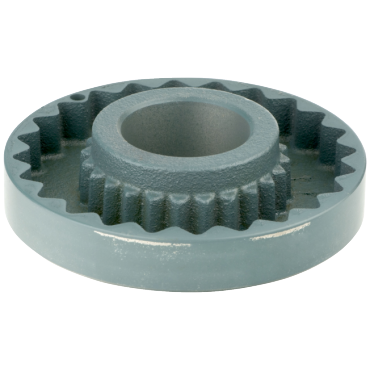

Dodge 6SC35SPCRFLG D-Flex Coupling SC Type

Product Description

The Dodge 6SC35SPCRFLG is a D-Flex coupling designed for reliable operation in various applications. This coupling features interchangeable components for easy installation and alignment. It slides into position for a snug fit without requiring lubrication, promoting clean operation. The design minimizes metal-to-metal contact, ensuring quiet performance while maintaining balance and reducing vibrations.

• Interchangeable components for quick installation
• Snug fit without lubrication
• AGMA 9 balanced for minimal vibration

Product Highlights

This product is ideal for HVAC and industrial applications, providing a dependable connection that reduces noise and vibration.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943187

Technical Specifications

• Hub Length: 1 7/32 in
• Material: Cast Iron
• For Hub: 6H
• Outside Diameter: 4 in
• Coupling Size: 6SC
• Bore Range [Max]: 1.375 in
• Hub Diameter: 2 1/2 in
• Max RPM: 6000 rpm
• Overall Width: 1 5/8 in
• Weight: 2.0 LB
• EAN or UPC: 782475873845
